B2B Meta Measurement Playbook (CAPI + Offline Conversions)

Underreporting, misattribution, and noisy platform data turn forecasting into guesswork, especially when your Facebook ad management program is expected to prove pipeline. This playbook gives B2B marketing leaders and paid social managers a resilient measurement setup that ties spend to real outcomes, not just form fills. We will standardize GA4-ready UTMs, run Pixel and Conversions API (CAPI) in parallel, send offline conversions from your CRM, deduplicate events, and report pipeline in GA4 and Looker Studio.

If you are pressure-testing partners across channels, this complements how you evaluate best social media marketing agencies, with a focus on measurement integrity (the part everyone claims to do and few can prove).

Our POV at Abe: first-party data, financial modeling, and Customer Generation™ methodology are what turn paid social from “busy” to bankable. Measurement is the foundation. If the signals are wrong, the bidding is wrong, the reporting is wrong, and the roadmap is fantasy.

How to build B2B Meta measurement (CAPI + Offline) step by step

Take the quick path first. Seven steps, each with inputs, success criteria, and the pitfalls that usually break attribution.

Step 1 — Standardize UTMs for GA4

What to do: Define and enforce a single UTM spec across Meta, your landing pages, and any link builders your team uses.

Shared UTM spec (example): utm_source=facebook, utm_medium=paid_social, utm_campaign=[offer-segment-date], optional utm_id, utm_source_platform=meta. Enforce lowercase and no spaces. Maintain a living sheet with allowed values.

Inputs: Channel taxonomy, naming conventions for offers/segments, a link builder (or at least a locked template), and a home for the “living sheet.”

Success criteria: GA4 shows facebook / paid_social consistently, and Meta traffic does not fall into “Unassigned.”

Pitfalls: Mixed casing (Facebook vs facebook), “Paid Social” with a space, tagging internal links, and campaign names that change mid-flight. These create fragmented reporting and ruin source/medium to pipeline joins.

Why it matters: clean channel grouping prevents “Unassigned” in GA4 and enables source/medium → pipeline reporting. Source: Google Analytics Help (URL builders) and Google Analytics Help (GA4 campaigns/traffic sources).

Step 2 — Implement Pixel + Conversions API in parallel

What to do: Deploy Meta Pixel (web) and CAPI (server via gateway, direct integration, or sGTM) at the same time, sending mirrored events. Use the same event names for the same user actions (for example: Lead, CompleteRegistration) and include customer info parameters where appropriate.

Inputs: Access to Meta Events Manager, tag management access, backend or integration access (gateway/sGTM/CRM middleware), and a clear event taxonomy (what counts as a Lead, what counts as SQL, etc.).

Success criteria: Events appear in Events Manager from both browser and server sources, with stable delivery and no spikes from retries.

Pitfalls: Shipping Pixel-only and “adding CAPI later” (you lose the ability to cleanly compare), mismatched naming (browser sends Lead while server sends lead), or sending different payloads per source without a plan for match quality and deduplication.

Why it matters: browser + server redundancy reduces signal loss and improves attribution. Source: Meta Developers (Conversions API guides).

Related reading: what good Facebook ads management looks like usually starts with boring fundamentals like this.

Step 3 — Configure deduplication

What to do: Send the same event_name and a shared event_id from both Pixel (often surfaced as eventID) and CAPI (event_id). Meta will merge the events and prevent double counting.

Inputs: A consistent way to generate and store an ID per conversion action (often per pageview or per form submission), plus implementation control in both your browser tag and server payload.

Success criteria: Events Manager diagnostics shows deduplication working and conversion counts are not inflated when both sources are live.

Pitfalls: Mismatched event names, missing IDs, reusing the same ID across multiple conversions, or double Pixel fires caused by multiple containers/themes/plugins.

Source: Meta Developers (Handling duplicate Pixel and CAPI events).

Step 4 — Map CRM fields and send offline events

What to do: Decide which downstream stages matter for your business, then map CRM fields to Meta parameters and send those outcomes as offline events via CAPI.

Recommended stages to send: Qualified Lead (or MQL), SQL, Opportunity, Closed Won. If you can attach value and currency at Opportunity or Closed Won, do it.

Inputs: A stage definition doc, CRM field map, a reliable unique identifier strategy (external_id, lead_id for Lead Ads, and hashed contact fields), plus an event_time strategy that reflects when the outcome happened.

Success criteria: Meta receives offline events tied back to ad-driven users with stable match rates, and you can optimize to deeper events when volume allows.

Pitfalls: “We will send Closed Won only” (too sparse for learning), no unique IDs (match rates suffer), and inconsistent stage definitions between Marketing and Sales (“SQL” in dashboards but not in the CRM).

Why it matters: Meta can optimize to revenue signals, not just form fills. Source: Meta Developers (Sending offline events via Conversions API).

Step 5 — Improve Event Match Quality (EMQ)

What to do: Monitor EMQ (0–10) in Events Manager and improve it by sending more usable identifiers (hashed where required), reducing latency, and tightening data hygiene.

Inputs: A list of available identifiers (email, phone, external CRM ID, click IDs), a privacy-reviewed hashing policy, and a way to monitor delivery latency and failures.

Success criteria: EMQ trends upward on primary events and stays stable after site releases and CRM changes.

Pitfalls: Sending identifiers inconsistently (sometimes email, sometimes not), dirty contact fields (extra spaces, outdated phones), and slow server delivery where offline events arrive too late to be useful for optimization.

Source: Meta Business Help (About event match quality).

Step 6 — Build pipeline reporting (GA4 + Looker)

What to do: Create a Looker Studio dashboard that starts with GA4 sessions and ends in CRM pipeline stages, so the business can answer “what did Meta drive?” without a weekly spreadsheet ritual.

Base view: Filter sessions where Source=facebook and Medium=paid_social; visualize sessions → leads → MQL → SQL → opportunity → Closed Won. Add cohort filters by first-touch month for more realistic payback and sales cycle views.

Inputs: GA4 traffic dimensions (source/medium/campaign, landing page), a join key strategy to tie web leads to CRM deals, and a consistent stage history model in the CRM.

Success criteria: The dashboard answers three questions quickly: (1) what is Meta doing this week, (2) what is it doing by cohort, and (3) how does that map to CAC, payback, and LTV:CAC.

Pitfalls: Mixing first-touch and last-touch without labeling it, importing costs without matching utm_id, and trying to “solve” multi-touch in one chart instead of clearly separating views.

Step 7 — QA and troubleshooting

What to do: Use Events Manager diagnostics and the Test Events tool to validate what you think is happening versus what is actually happening.

Inputs: A QA plan (what pages, what events, what IDs), access to Events Manager, and a weekly cadence for review.

Success criteria: Stable event counts, a healthy dedup rate, improving EMQ, and dataset freshness that does not drift.

Pitfalls: Only testing launch day, ignoring warnings until “suddenly conversions dropped,” and changing CRM automation without updating the CAPI payload mapping.

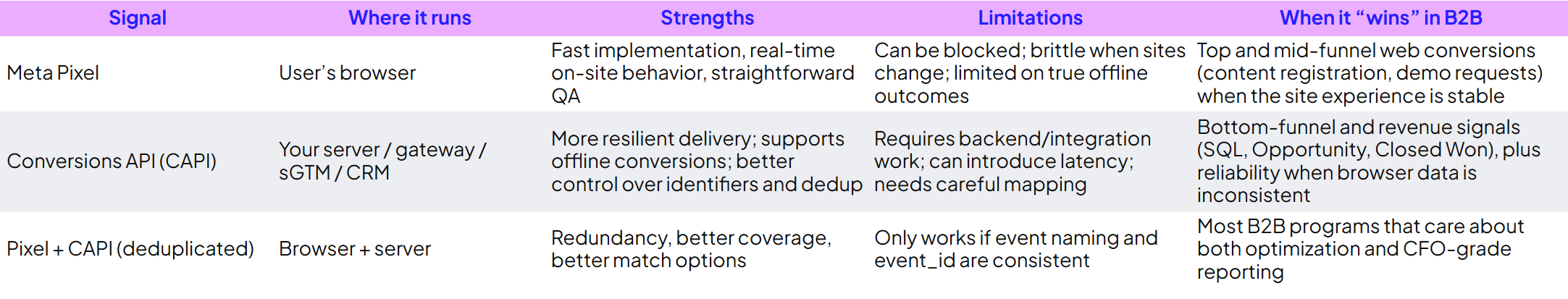

Pixel vs Conversions API: what to deploy and why

Pixel (browser): fast to launch; limited by blockers and cookie windows.

CAPI (server): resilient to browser limits; supports offline and CRM events. Best practice: run both and deduplicate. Source: Meta Developers.

Offline conversions and CRM mapping

Offline conversions are how you close the loop: you take outcomes that happen after the click (qualification, pipeline creation, revenue) and send them back to Meta. That lets you (a) measure beyond form fills and (b) eventually optimize bidding toward higher-quality signals. It also forces discipline: if your HubSpot or Salesforce integration is messy, the data will tell on you.

Privacy and review note: Involve legal/privacy early. Document which identifiers you will send, how they are hashed where required, retention policies, and who has access to raw exports. Keep this as part of your CRM mapping spec so it does not get “refactored” away in the next rev.

Workflow example with HubSpot

Flow: Lead Ads/website form → HubSpot contact. Map Meta Lead ID if using Instant Forms. Trigger CRM stage updates (e.g., SQL/Opportunity) to fire CAPI events with identifiers and values.

Implementation notes: Confirm whether your native connector stores Meta Lead ID. Some native apps do not persist it cleanly, which makes later matching harder. If that is the case, use a webhook or middleware to capture lead_id, fbclid, and UTMs at the moment of lead creation, then store them in dedicated HubSpot properties.

QA checklist: Pick one real test lead, push it through stages, and verify each event arrives in Events Manager with expected parameters and timestamps.

Workflow example with Salesforce

Flow: Capture fbclid/UTMs to Lead/Opportunity. On stage change (e.g., Opportunity Created/Closed Won), send CAPI offline event with order_id/external_id, value, and customer info. Validate attribution in Ads Manager.

Implementation notes: Store click IDs and UTMs in explicit fields at lead creation, then carry them forward to Contact/Account/Opportunity based on your sales process. The big failure mode is “marketing has UTMs on the Lead object but revenue lives on Opportunity,” and nobody mapped the bridge.

QA checklist: Create a test Opportunity, advance it through stages, then confirm the offline event appears in Events Manager and does not duplicate with web events.

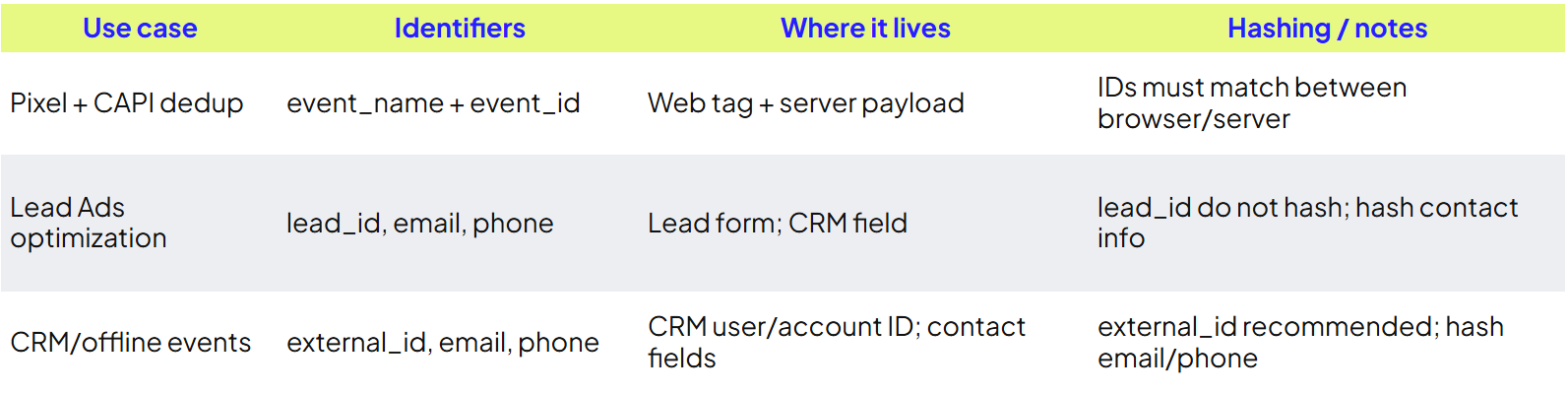

Identifiers to send (one‑page reference)

For implementation details and parameter requirements, reference Meta’s official guides: Conversions API guides and offline events.

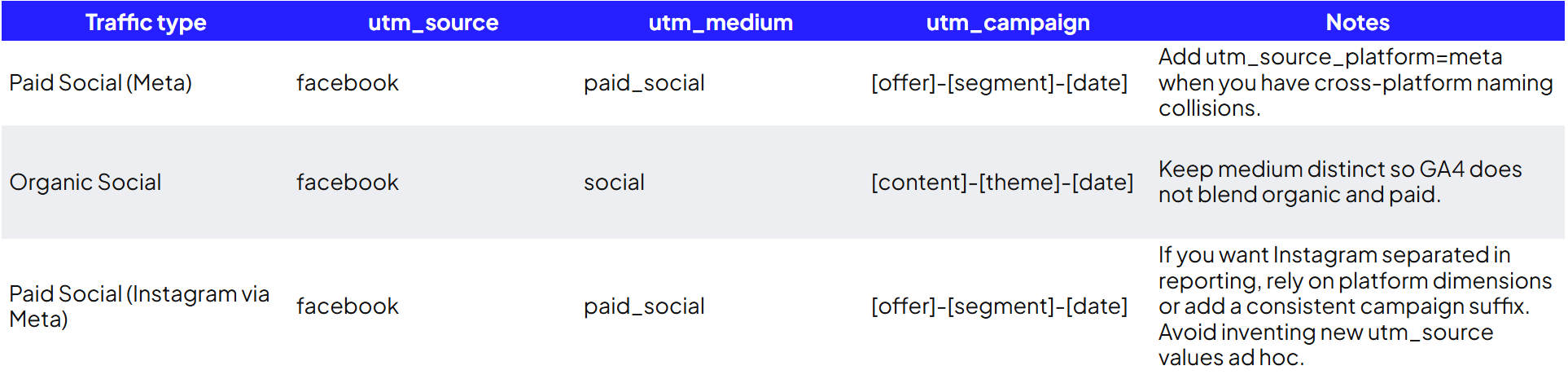

UTM standards for GA4 and Meta

Conventions: all lowercase; no spaces; use hyphens. Examples: utm_source=facebook, utm_medium=paid_social, utm_campaign=demo-offer-finserv-q1.

Add utm_id for cost imports and utm_source_platform=meta for clarity. Don’t tag internal links. Source: Google Analytics Help.

Deduplication rules and validation

Requirements: identical event_name + shared event_id across Pixel and CAPI. Validate in Events Manager: check “Deduplicated events” metric and warnings.

Testing: fire a test with any unique ID )often order_id for purchase-type events; confirm one conversion counted, not two. Source: Meta Developers (deduplication).

  • Rule 1: One real-world action (one lead submit) should produce one conversion in reporting.
  • Rule 2: If both browser and server send the event, they must share the same event_id.
  • Rule 3: If you have partners sending events (e.g., commerce platforms or CRMs), confirm whether they already send CAPI events. Partner + manual tags without coordination is a common double-count setup.

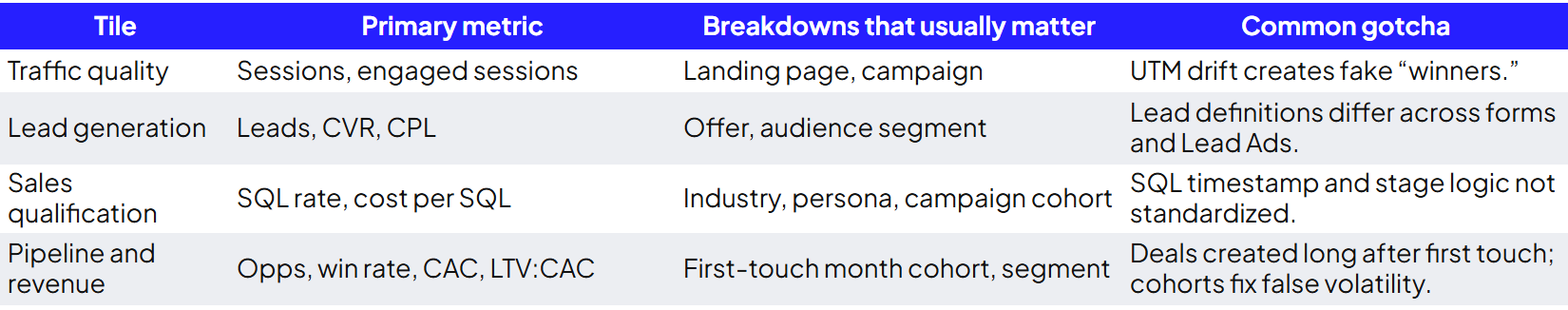

Pipeline reporting + sample Looker/GA4 view

Recommended fields: Session source/medium, session campaign, page/landing page; CRM stages (Lead, MQL, SQL, Opp, CW) joined via deal key; revenue and LTV.

Sample tiles: Sessions → Leads (CVR), CPL; Leads → SQL (qual rate), cost per SQL; SQL → Opp (rate), cost per opp; Opp → CW (win rate), CAC, payback, LTV:CAC.

Tip: Keep one clearly labeled “first-touch” view for acquisition performance and one “current period influenced” view for in-quarter storytelling. Do not blend them and call it truth.

Troubleshooting and QA

If conversions are missing: check consent state, Pixel firing conditions, CAPI auth, dataset mapping, and clock skew.

If duplicates: look for multiple Pixel instances, mismatched event_id, or partner + manual tags running together.

If EMQ is low: send more identifiers (hashed), ensure clean emails/phones, include external_id, reduce latency, verify domain matching.

Weekly checks: Events Manager diagnostics, EMQ trend, dataset freshness, dedup rate, and GA4 source/medium accuracy.

  • Signals: Compare event volume by source (browser vs server). Sudden divergence usually means a release broke one path.
  • IDs: Spot check that event_id values are present and unique. If you see blanks or repeats, dedup will fail.
  • Latency: If offline events arrive too late, Meta can still record them, but optimization usefulness may degrade. Track “freshness” inside Events Manager.
  • Coverage: If only some forms fire events, audit conditions (single-page apps, embedded forms, thank-you pages, and cross-domain redirects are frequent culprits).
  • Meta ads support reality check: Before escalating, export diagnostics screenshots and one test click path. You will save days by being precise.

Measurement checklist

UTM policy documented; examples for Paid/Organic Social; lowercase enforced via link builder.

Pixel implemented on all conversion pages; standard events named consistently.

Conversions API live (gateway or sGTM) sending mirrored events.

event_id shared between browser and server; aim for zero persistent deduplication warnings; investigate any recurring warnings.

Customer info parameters included (hashed email/phone; external_id). lead_id mapped if using Lead Ads.

Offline events defined (SQL, Opportunity, Closed Won) with value/currency.

HubSpot/Salesforce fields mapped to Meta params; test payloads pass in Events Manager.

Aim to improve EMQ over time (e.g., many teams target ‘medium to high’ scores) and prioritize trend + coverage over a single cutoff

GA4 channel grouping shows facebook / paid_social; no “Unassigned” for Meta clicks.

Looker dashboard live: sessions → pipeline funnel with cost overlays and LTV:CAC.

Run a monthly attribution sanity check: platform vs CRM vs GA4.

Add JSON‑LD for HowTo and FAQPage (see FAQ below for questions).

Move Beyond Manual Measurement With Abe

Measurement shouldn’t be a guessing game. Abe configures Pixel + CAPI, offline conversions, and clean UTMs so your Meta data reflects reality—then we optimize to pipeline and payback, not vanity clicks.

Our Customer Generation™ approach blends first‑party data, financial modeling, and pragmatic QA to make every signal count.

Faster signal integrity: deduped events, higher EMQ, fewer gaps.

Closed‑loop revenue: SQL/Opp/CW synced from CRM for smarter bidding.

Clarity in GA4/Looker: source/medium clean, cohort views for CFOs.

Operational guardrails: a living checklist and weekly diagnostics.

Ready to see the full picture and scale what works? Talk to our Facebook advertising agency.

FAQ

What is Conversions API (CAPI)?

A server‑side way to send web and offline events (including CRM outcomes) to Meta for measurement and optimization.

Do I still need the Pixel?

Yes. Use Pixel + CAPI together for coverage, then deduplicate with a shared event_id.

Which identifiers should I send?

Hash email/phone; include external_id; use lead_id (not hashed) for Lead Ads; add click IDs when possible.

How long until data stabilizes?

Plan 2–4 weeks to validate signals and build enough volume for optimization and reporting.

How do I keep GA4 clean?

Enforce UTM standards (source=facebook, medium=paid_social), avoid tagging internal links, and audit “Unassigned.”

What’s the difference between the Meta Pixel and Conversions API? Pixel sends browser events; Conversions API sends server events from your systems. Using both improves resilience and attribution when matched and deduplicated.

How do I deduplicate Pixel and CAPI events? Send the same event_name and a shared event_id from both browser and server. Meta will merge them to prevent double counting.

Can I send offline conversions from my CRM to Meta? Yes. Use the Conversions API to send offline events (e.g., qualified lead, opportunity, purchase) with identifiers like email/phone, external_id, or lead_id.

How do I improve Event Match Quality (EMQ)? Include more customer info parameters (hashed where required), ensure fresh/accurate data, and use both Pixel and CAPI for coverage.

Which UTM parameters should I use for GA4? Standardize utm_source, utm_medium, and utm_campaign; add utm_id and utm_source_platform when relevant for cleaner channel attribution.
